EinScan Rigil Lite

En stock
Unité de gestion de stock: D-EIN-RIGIL-L
Prix $4,899.00

Utilisez ce texte pour encourager la communication ou promouvoir le partage sur les réseaux sociaux.

Vous pouvez également ajouter des liens

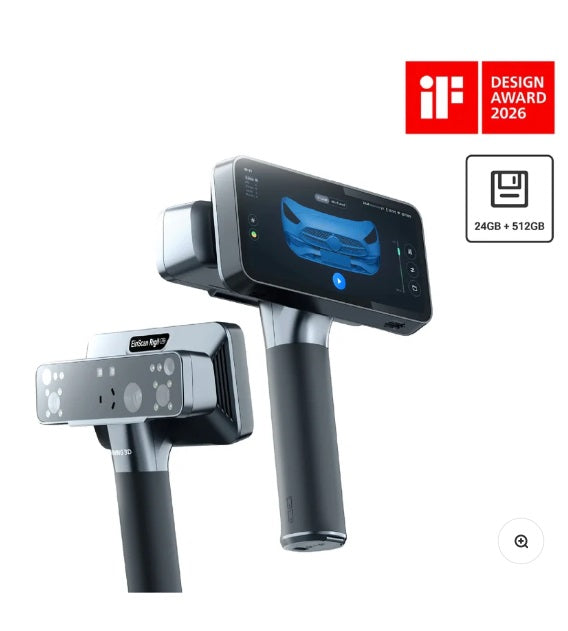

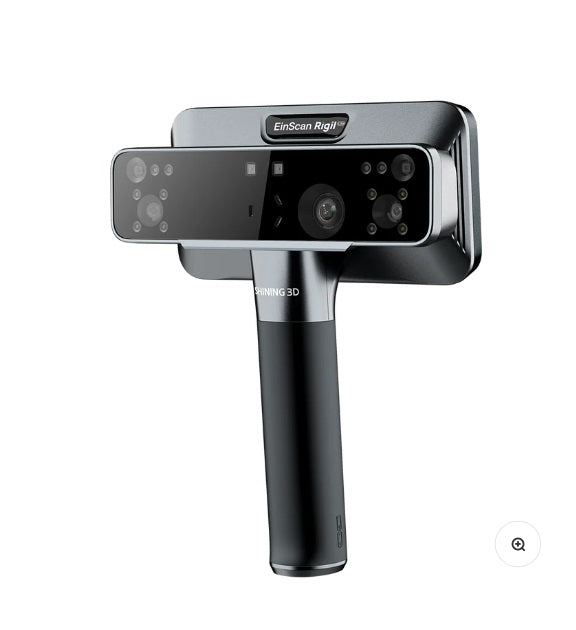

EinScan Rigil Lite – All-in-One 3D Scanner with Laser and Infrared

The EinScan Rigil Lite is the more affordable member of Shining 3D’s Rigil family. Like the Rigil, it puts the scanner, a 6.4-inch 2K touch screen, an 8-core computer, storage and two batteries into one 870 g handheld unit, and it can scan with or without a computer. It uses blue lasers for detail and infrared for speed and large objects. At EnviroLaser3D it costs $4,899 CAD for the 24GB RAM and 512GB SSD version.

Shining 3D aims it at professionals and beginners in engineering, manufacturing, digital content creation, education and research, and its scans export in formats ready for 3D printing. The scanner is currently on backorder: Call 1.800.565.9156 or email info@envirolaser.com for the current lead time.

What “tri-mode” means

Tri-mode refers to the Rigil Lite’s three work modes, which set where the scan data is processed:

  • Standalone: no computer needed. Scan and process on the scanner’s own 8-core processor and 24GB of RAM, wherever the object is.

  • PC Wireless: connect to a computer over the built-in Wi-Fi 6 for bigger projects, without a cable.

  • PC Wired: connect by cable for extra computing resource on the largest scans.

It also has two scan modes:

  • Laser HD uses 17+17 crossed blue laser lines (2,940,000 points/s) for speed, coverage and steadier tracking, and 7 parallel lines (1,620,000 points/s) for finer details and sharper edges. You can switch between them in about a second during the same scan. Resolution goes down to 0.05 mm at 170 to 550 mm from the part.

  • IR Rapid uses an infrared VCSEL light at 16,000,000 points/s, from 160 to 1,500 mm away, for larger objects. Shining 3D describes it as fast, wide and eye-safe, so it can also scan people.

Key features at a glance

  • Marker-free laser scanning, using the part’s own geometry as the tracking reference

  • Super-hybrid alignment (IR and laser), with texture-assisted alignment for low-feature surfaces

  • 5MP full-colour texture scanning

  • Handles dark and reflective surfaces without spray, indoors or in the sun (Shining 3D)

  • Up to 3 hours of runtime from two swappable batteries

  • 6.4-inch 2K AMOLED touch screen to scan, check and edit on the device

  • Exports STL, OBJ, PLY, 3MF, ASC and LAS for CAD and 3D printing

Accuracy

Shining 3D has not published a volumetric accuracy figure for the Rigil Lite. It states that the Lite’s accuracy is a bit lower than the EinScan Rigil’s (up to 0.04 + 0.06 mm/m in Laser HD). Resolution is the same on both scanners, down to 0.05 mm. If you need the Rigil’s published accuracy for inspection work, choose the EinScan Rigil.

Hardware: what’s built in and what’s in the box

The EinScan Rigil Lite is its own computer: an 8-core 2.4 GHz processor, 24GB LPDDR5 RAM, 64GB eMMC plus a 512GB SSD and a 6.4-inch 2K AMOLED touch screen, powered by two 5,500 mAh batteries. In Standalone mode you need no other hardware.

Shining 3D’s packing list for the EinScan Rigil Lite:

  • EinScan Rigil Lite scanner

  • Battery, plus battery compartment and charging cable

  • Power adaptor and Type-C cable for the scanner

  • Calibration board

  • Universal holder

  • 3 mm and 6 mm reflective markers, with a marker removal tool

  • Tempered glass screen protector and cleaning cloth

  • Carrying case

For PC Wireless and PC Wired modes, Shining 3D recommends a Windows laptop with an Intel Core i7-13700H or above, an NVIDIA RTX 3060 Laptop GPU (8GB) or above and 64GB of RAM, or a Mac with an M-series Pro, Max or Ultra chip and 24GB of RAM or more. The full list is in the Tech Specs below. For transparent parts, which optical scanners can’t capture, we stock AESUB scanning sprays.

EinScan Rigil Lite vs EinScan Rigil

Both scanners share the same design, work modes, IR Rapid mode, resolution and working distances. The Lite saves $2,096 CAD; the EinScan Rigil adds more laser lines, more memory and storage, and a published accuracy figure.


EinScan Rigil

EinScan Rigil Lite

Price (CAD) $6,995.00 $4,899.00
Crossed blue laser lines 25+25 17+17
Crossed-line scan speed 4,800,000 points/s 2,940,000 points/s
Parallel lines / IR VCSEL 7 parallel lines + IR VCSEL 7 parallel lines + IR VCSEL
Volumetric accuracy (Laser HD) Up to 0.04 + 0.06 mm/m Not published (stated as a bit lower than the Rigil)
RAM / storage 32GB LPDDR5 / 64GB eMMC + 1TB SSD 24GB LPDDR5 / 64GB eMMC + 512GB SSD
Work modes Standalone, PC Wireless, PC Wired Standalone, PC Wireless, PC Wired

Watch the EinScan Rigil Lite

See the EinScan Rigil Lite in our Ottawa showroom

Our showroom at 199 Colonnade Road South, Nepean runs EinScan 3D scanner demonstrations, where you can test scanner capabilities with sample objects and talk to the team that scans with these systems every day. We’re open Monday to Friday, 9 AM to 5 PM, and Saturday, 10 AM to 2 PM, with free parking out front. Call 613.225.4726 or 1.800.565.9156 to book a EinScan Rigil Lite demo before you visit, so we can have the scanner ready for you.

3D scanning service in Ottawa

If you only need a few parts scanned, you don’t have to buy a scanner. EnviroLaser3D offers 3D scanning services at our Ottawa showroom, plus CAD modelling and custom 3D printing, so we can take a part from scan to finished print. Our team guides customers through reverse engineering, quality inspection and design workflows. Contact us with the size of the part and what you need the scan for, and we’ll quote the job.

Financing with Shop Pay Installments

You can spread the $4,899 CAD cost of the EinScan Rigil Lite with Shop Pay Installments at checkout: 3, 6 or 12 monthly payments for orders from $1,000 CAD. Financing is provided by Affirm and is subject to an eligibility check and approval. Your rate depends on your credit, and the exact terms are shown at checkout before you confirm. Payment options may not be available in all provinces and territories, and a down payment may be required.

See all our 3D scanners, or print your scans on a Bambu Lab 3D printer.

Tech Specs:

Model

EinScan Rigil Lite

Version 24GB LPDDR5 + 512GB SSD (regular edition)
Work Modes Standalone; PC Wireless and PC Wired for extra computing resource
Scan Modes Laser HD, IR Rapid
Light Source 17+17 crossed blue laser lines, 7 blue laser parallel lines, IR VCSEL
Resolution Laser HD: 0.05 to 10 mm; IR Rapid: 0.2 to 10 mm
Scan Speed 17+17 crossed lines: 2,940,000 points/s; 7 parallel lines: 1,620,000 points/s; IR Rapid: 16,000,000 points/s
Working Distance Laser HD: 170 to 550 mm; IR Rapid: 160 to 1,500 mm
Alignment Modes Laser HD: global markers, markers, features; IR Rapid: markers, features, texture (freely combinable), global markers
Volumetric Accuracy Not published by Shining 3D (stated as a bit lower than the EinScan Rigil)
Camera Resolution 3D: 2.3MP × 2 and 1.3MP × 2; texture: 5MP
Output Formats STL, OBJ, PLY, 3MF, ASC, LAS
Laser Class Laser HD: Class II
Hardware 8-core 2.4GHz CPU, 24GB LPDDR5 RAM, 64GB eMMC + 512GB SSD, 6.4" 2K AMOLED touch screen
Operating Temperature -10 °C to 40 °C
Certifications CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
Recommended Windows PC (wired/wireless modes) Intel Core i7-13700H or above, NVIDIA RTX 3060 Laptop GPU or above (8GB VRAM), 64GB RAM, USB 3.0, Windows 11 64-bit
Recommended Mac (wired/wireless modes) M1 Max / M1 Ultra / M2 Max / M2 Ultra / M3 Pro / M3 Max / M3 Ultra / M4 Pro / M4 Max / M5 or above, 24GB RAM or more, macOS Tahoe 26.2 or above (MacBook Air not recommended)
Dimensions (H × D × W) 233 × 180 × 72.8 mm
Net Weight 870 g (batteries included)
Interface & Power USB Type-C; batteries 5,500 mAh × 2; supports 60W PD3.0 charger

Frequently Asked Questions

  • How much is the EinScan Rigil Lite in Canada?
    The EinScan Rigil Lite is $4,899 CAD at EnviroLaser3D, for the 24GB RAM and 512GB SSD version. It is currently on backorder, so contact us for the current lead time before you order.

  • What does tri-mode mean on the EinScan Rigil Lite?
    Tri-mode means three work modes. The Lite can scan and process on its own with no computer (Standalone), connect to a computer over Wi-Fi 6 (PC Wireless), or connect by cable (PC Wired) when you need more processing power.

  • What is the difference between the Rigil Lite and the EinScan Rigil?
    The Lite has 17+17 crossed laser lines against the Rigil’s 25+25, which Shining 3D says makes the Rigil 40% faster. The Lite has 24GB RAM and a 512GB SSD against 32GB and 1TB, and its accuracy is a bit lower. Both share the same work modes, IR Rapid mode, resolution and working distances. The Lite costs $2,096 CAD less.

  • How accurate is the EinScan Rigil Lite?
    Shining 3D has not published a volumetric accuracy figure for the Rigil Lite. It states that the Lite’s accuracy is a bit lower than the EinScan Rigil’s, which is up to 0.04 + 0.06 mm/m in Laser HD mode. Resolution is the same on both, down to 0.05 mm.

  • Does the Rigil Lite need a computer?
    No. It has a built-in 8-core processor, 24GB of RAM and a 512GB SSD, so scanning and processing can be done on the scanner. A computer is optional for larger projects.

  • How long does the battery last?
    Shining 3D quotes up to 3 hours of runtime from the two swappable batteries, and you can swap a battery to keep scanning without downtime.

  • Is the Rigil Lite good for 3D printing?
    Yes. It exports STL, OBJ, PLY, 3MF, ASC and LAS files, so you can scan a part, clean it up and print it on a 3D printer such as our Bambu Lab range.

  • Can I see the Rigil Lite before I buy?
    Yes. Our Ottawa showroom at 199 Colonnade Road South, Nepean, runs EinScan 3D scanner demonstrations. Call 613.225.4726 or 1.800.565.9156 to book a Rigil Lite demo before you visit. We’re open Monday to Friday 9 AM to 5 PM and Saturday 10 AM to 2 PM.

  • Can I pay for the Rigil Lite in monthly instalments?
    Yes. Shop Pay Installments at checkout lets you pay in 3, 6 or 12 monthly payments for orders from $1,000 CAD, subject to an eligibility check and approval by Affirm. Your rate and terms are shown at checkout.

  • Can you scan a part for me instead?
    Yes. EnviroLaser3D offers 3D scanning services at our Ottawa showroom, along with CAD modelling and custom 3D printing. Contact us with the part’s size and what you need the scan for, and we’ll quote the job.

  • What comes in the box with the Rigil Lite?
    Shining 3D’s packing list includes the scanner, a battery with battery compartment and charging cable, a power adaptor, a Type-C cable, a calibration board, a universal holder, 3 mm and 6 mm reflective markers with a marker removal tool, a tempered glass screen protector, a cleaning cloth and a carrying case.
