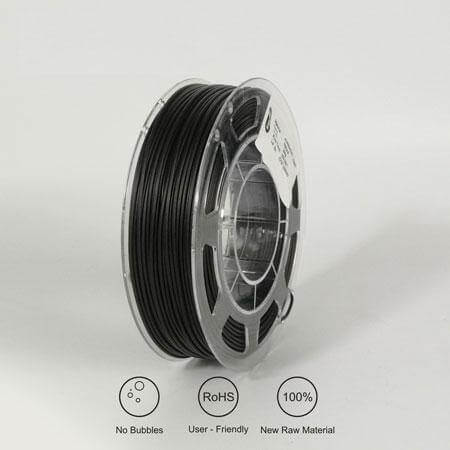

EL3D® PLA Conductive Filament .2Kg
High Quality Conductive PLA material
2017-June, first Conductive filament

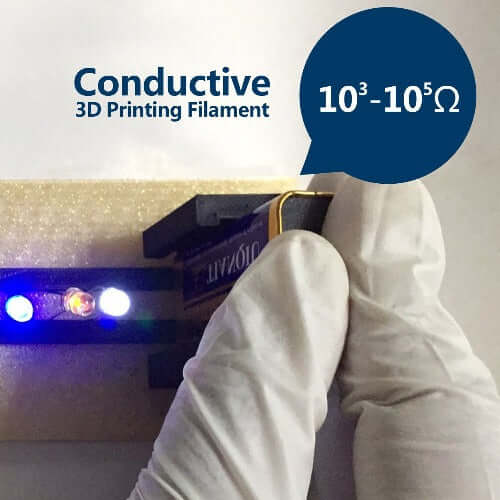

EL3D conductive filament is a PLA based material that contains contain graphitized carbon material or graphene and is ideal for DIY electronic projects, This material allows for the printing of electrical flow projects & small circuits.
EL3D® is a premium quality manufactured filament that produces the finest prints. Never using recycled materials and adhering to 100% use of pure raw materials leads to consistent high-grade filaments. The promise of high-purity, high-precision filaments is ensured through the ROHS certification and SGS testing.
Spool Net Weight:.2kg
Diameter:1.75mm ± 0.05mm
Print Temperature:200 - 230°C
Hot Bed Temperature:100°C
Print Speed:50 - 110mm/s
Testing Report For Conductive | ||||
Item | Testing project | Unit | Testing Data | |
1# | 2# | |||
Conductive Plastic | Resistance | Ω | 1.28 | 1.12 |
Resistivity | Ω·cm | 1.42 | 1.42 | |
Surface resistivity | Ω/sq | 185 | 192 | |
Volume resistivity | Ω·cm | 1.5 | 1.42 | |
Volume resistivity | Ω·cm | 1.5 | 1.43 | |
Safe Voltage Max. | V | 35.1 | 35 | |
Safe Voltage Max. | V | 34.8 | 35 | |
Safe Current Max. | A | 0.018 | 0.021 | |
Safe Current Max. | A | 0.017 | 0.022 | |
Density | g/cm³ | 1.362 | 1.355 |
