Mingda Magician X2 3D Printer

Mingda

  • $270.72
  • Save $30.08
Shipping calculated at checkout.

Only 22 left!

Step up to next generation printing with the Mingda Magician X2. This printer offers next generation features that make printing easy and fun. With Smart Automatic Bed Leveling on a PEI platform, you will enjoy worry free and silent printing.



The Magician X2 is equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and smoother system. The integration of silent drivers gives the motherboard both silent printing and precise voltage output control, ensuring more accurate and silent printing.

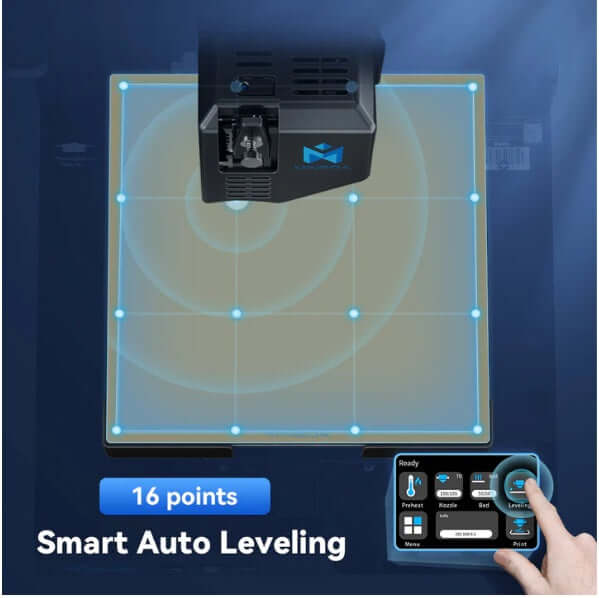

Smart ABL



















High-sensitivity sensor with one-touch 16 point precise leveling.

 Easy to assemble

So easy to assemble in just a matter of minutes -One Step Assembly.

Print anywhere in your space.  Ultra quiet 45 to 50db.

 Dual Fan

 Dual cooling fans to allow for faster printing up to 100mm/s

 gear

Enhanced double geared extruder to improve speed or for printing with TPU.



PEI Bed

PEI platform with a special coating and spring steel sheet for good adhesion and anti-warping, the models can be removed by gently bending the PEI after finished printing.

 z belt support

Dual Z-axis with synchronous belt is a valued upgrade.
Improve the accuracy, keep “layer shift” away.



Belt tensioner

Easy to adjust your belt tensions with built in tension knobs.



32 bit

 All wrapped up in a powerful, high performance 32-bit chip.



3.5 Inch LCD

Simple to operate with the 3.5" color screen.
Filament Out Sensor.
Power restore.

Multi Connections and so much more.

  Technical Specifications

● Print parameters: FDM (Fused Deposition Modeling)
● Build Volume: 230(L)*230(W)*260(H)mm
● Print Resolution: ± 0.1mm
● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
● Extruder Number: Single
● Nozzle Diameter: 0.4mm
● Print Speed: <200mm/s (recommended 60 - 80mm/s)
● Support Filaments: PLA, TPU, ABS
● Software parameters: Cura
● Input Formats: .STL, .OBJ, .AMF
● Output Formats: GCODE
● Connection Mode: SD Card, U Disk, USB-C
● Input voltage: 100/240 V AC, 50/60Hz
● Output voltage: 24V (350W)
● Ambient operating Temperature: 5℃ - 40℃
● Operational Nozzle Temperature: max ≤260℃
● Operational Hot Bed Temperature: max ≤110℃
● Machine Size: 460mm*415mm*546mm
