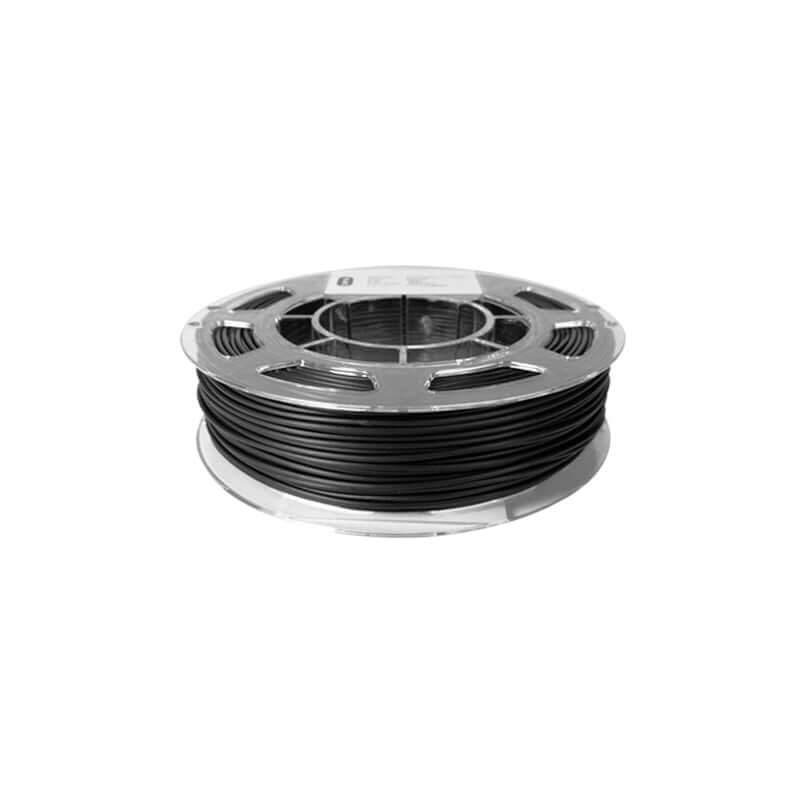

PLA Conductive Filament .5Kg

Hello3D

  • $64.95
  • Save $5.00
Shipping calculated at checkout.

Only 1 left!

High Quality Conductive PLA material



2017-June, first Conductive filament in China.



EL3D conductive filament is a PLA based material that contains contain graphitized carbon material or graphene and is ideal for DIY electronic projects, This material allows for the printing of electrical flow projects & small circuits.

EL3D is a premium quality manufactured filament that produces the finest prints. Never using recycled materials and adhering to 100% use of pure raw materials leads to consistent high-grade filaments. The promise of high-purity, high-precision filaments is ensured through the ROHS certification and SGS testing.


Spool Net Weight:.5kg

Diameter:1.75mm ± 0.05mm

Print Temperature:200 - 230°C

Hot Bed Temperature:100°C

Print Speed:50 - 110mm/s



Testing Report For Conductive
Item Testing project Unit Testing Data
1# 2#
Conductive Plastic Resistance Ω 1.28 1.12
Resistivity Ω·cm 1.42 1.42
Surface resistivity Ω/sq 185 192
Volume resistivity Ω·cm 1.5 1.42
Volume resistivity Ω·cm 1.5 1.43
Safe Voltage Max. V 35.1 35
Safe Voltage Max. V 34.8 35
Safe Current Max. A 0.018 0.021
Safe Current Max. A 0.017 0.022
Density g/cm³ 1.362 1.355
