Full Spectrum PS36 Pro-Series Laser System -Standard Package

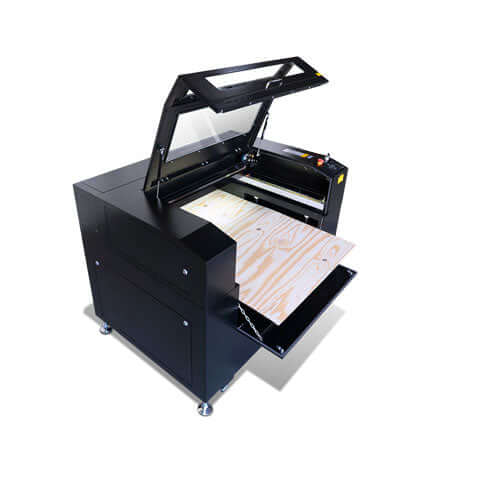

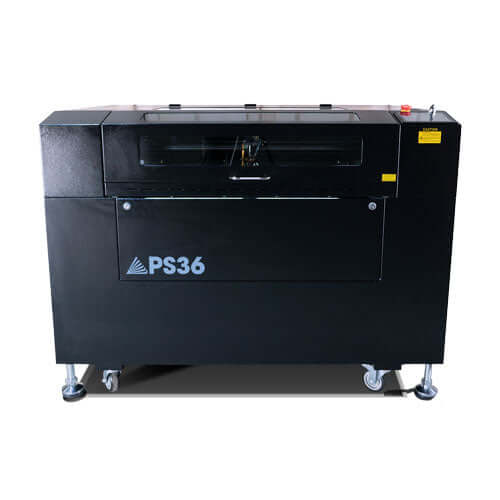

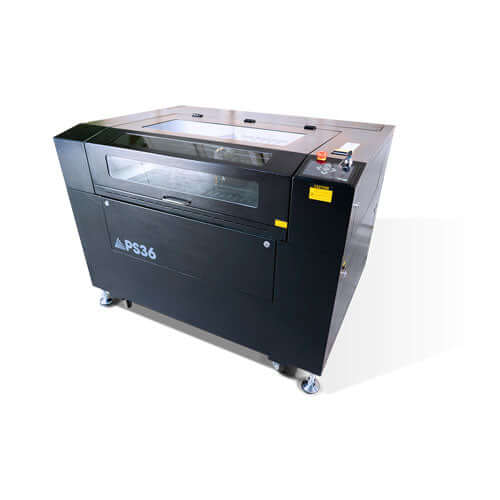

Full Spectrum PS36 Pro-Series Laser System
Shipping & Brokerage Fees Included in the Price
Please call or email info@envirolaser.com for customized package and specific pricing to your location
Includes: 90W Laser Cutter, Air compressor, Radiator Water Chiller & Exhaust fan
Professional Grade Laser Systems
The next step in precision, power and performance. Designed for industry-scale production and heavy usage output. Now featuring LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software.
Newly advanced Professional Grade Laser Systems are now available from Full Spectrum Laser. Exclusive innovations include new, feature-packed LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software, highlighting a full design suite and compatibility with Mac, PC or Linux. The new era of professional grade laser systems has arrived!
The Best Laser Control Software on the Market!
This powerful, browser-based software lives right on your laser and is accessed using your favorite browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever. Welcome to the future of laser control & design software!
Tech Specs
WEIGHT & DIMENSIONS
- Engraving Area: 36" x 24" (914mm x 610mm)
- Machine Dimensions: 56" x 40" x 41" (1420mm x 800mm x 843mm)
- Weight: 484 lbs (220 kg)
- Z-Table Range: 8.5"
LASER
- Laser Classification: Class 3R
- Laser Type: Sealed CO2 Laser Tube
- Laser Power: 90W
- Focus Lens: 2.5"
POWER
- Power Supply: AC 110V native (220V option available)
- Gross Power: < 1000W
SYSTEM
- Operation Modes: Precision Raster, Vector or Combined Modes
- Motion Control: High-Speed Stepper Motors
- Operating Temperature: 0C - 45C
CONTROL SOFTWARE
- Software: RetinaEngrave v3.0
- Compatibility: PC, Mac & Linux
- Apple® Mac® OS® X v10.9 or later (Mavericks)
- Microsoft® Windows® 10
- Microsoft® Windows® 8.1
- Microsoft® Windows® 7 SP1
- Browser Compatibility: Google Chrome (recommended), Safari, Firefox, Edge, & Internet Explorer
- Min Screen Resolution: 1024 x 768 Pixels
- Ability to Connect Through Network (Ethernet or Wireless) without Internet Connection
- Wireless Connection Frequency: 2.4 GHz
MATERIAL CAPABILITIES
- ¼" Wood (Cut/Engrave)
- ¼" Acrylic (Cut/Engrave)
- Fabric (Cut/Engrave)
- Cardboard (Cut/Engrave)
- Paper (Cut/Engrave)
- Natural Leather (Cut/Engrave)
- Stone (Engrave only)
- Glass (Engrave only)
- Rubber (Cut/Engrave)
MACHINE FEATURES
- LCD Touchscreen
- Knife Edge Table
- Autofocus Sensor
- Front and Back Pass-Through Doors (24" x 3")
- Motorized Z-table Control
- Keyed Access Panels
- Emergency E-Stop
INCLUDED EQUIPMENT
- 90W Laser Tube
- Radiator Water Chiller
- 2.5" Focus Lens
- Industrial Exhaust Fan
- Air Assist Air Pump
OPTIONAL ACCESSORIES
- Upgrade Cooling System: Refrigerated Water Chiller
- Upgrade Exhaust System: Large Exhaust Fan; Fume Extractor
- Specialized Focus Lenses: 1.5"; 2.0"; 5.0"
- Rotaries: Chuck Rotary; Friction Rotary
