eviXscan 3D Heavy Duty Optima 3D Scanner

Evatronix

  • $32,500.00
  • Save $2,500
Shipping calculated at checkout.

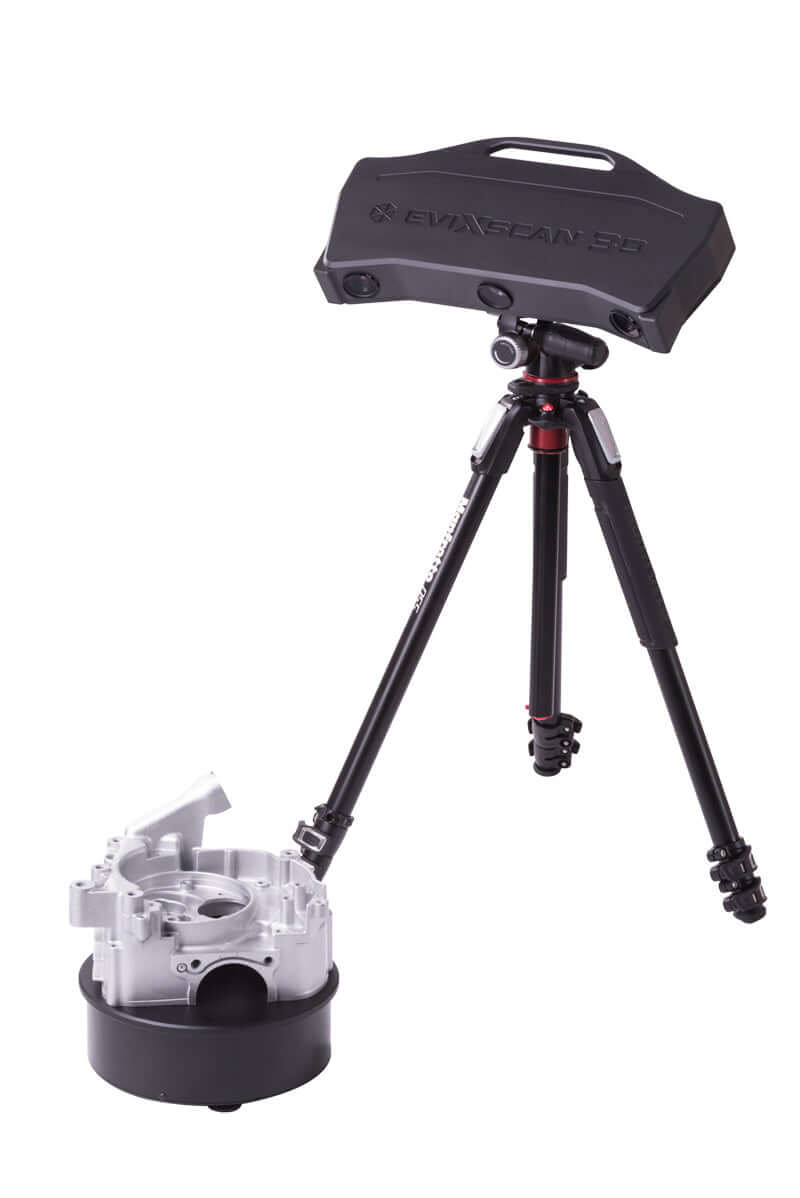

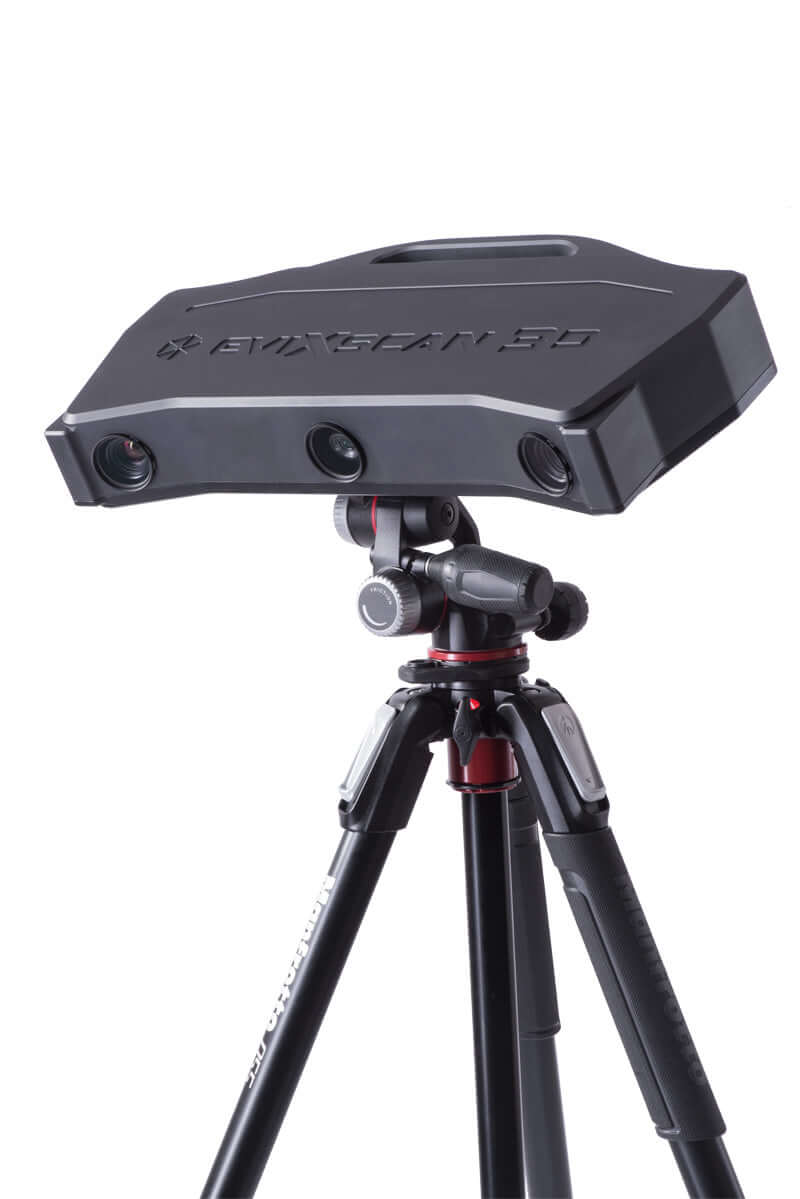

eviXscan 3D Heavy Duty Optima 3D scanner

HIGH ACCURACY
EXCELLENT PRICE

Versatile 3D scanning in harsh environment. Accuracy: 0.013mm, light-source: R/G/B LED, 2 measuring ranges.

precise 3D scanning of medium to large objects in harsh conditions

  •  precision certified to VDI/VDE recommendations
  •  blue LED long-life light source
  •  two 5Mpix cameras
  •  perfect for: quality control, reverse engineering and rapid prototyping

    Advantages of eviXscan Heavy Duty Optima 3D scanner

    Accuracy, strength & comfort

    • High quality lenses and cameras
    • Certified precision according to VDI/VDE 2634 Part 2, 4.1 Ps
    • Long life strong power LED light source
    • Complete system in a handy mobile case
    • Strong aluminium body
    • High resistance to dust and moisture
    • Ability to scan also in external conditions
    • Low power consumption
    • Possibility of calibration by the end user
    • Temperature compensation

    Software

    • lntuitive software eviXscan in two language versions English and Polish
    • Export results to the most popular formats (stl, ply, obj, asc, bin)
    • Software for editing point clouds and meshes
    • Software enhancements and updates

    Support

    • Training for 2 operators included in the price of the scanner
    • Technical support
    • 24 months warranty

      Overview

      eviXscan 3D Heavy Duty Optima is a professional reverse engineering tool for 3D scanning, contactless quality control and fast prototyping medium sized models.

      Optima, optimized combination of key parameters for customer: high accuracy measurement (up to 0.0183 mm), high point density (95 pt/mm²) and large scanning volume (250mm x 170mm x 120mm), all that at affordable level of purchase and implementation of complex measuring system.

      Heavy Duty Optima fits perfect for companies, where the key factor for customer is high accuracy measurement, and want to keep this mission alive despite low available budget.

      Heavy Duty Optima is equipped with two high quality, 5 megapixels cameras, and high power, blue LED light source, keeping power consumption at low level (20W) and lowering the heat emission, extending product lifetime at same time. Advantage of certain wavelength of light source helps to limit influence of optics on gathered data, moreover blue light has the lowest diffraction, which helps to keep measurement results at highest level.

        Call For Details
