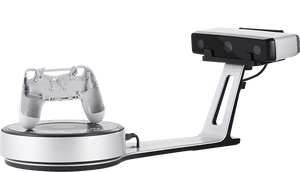

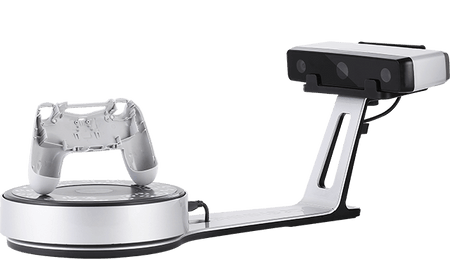

EinScan SP Dektop Scanner
-
High accuracy certified through serious accuracy calibration process
-
Faster scanning speed
-

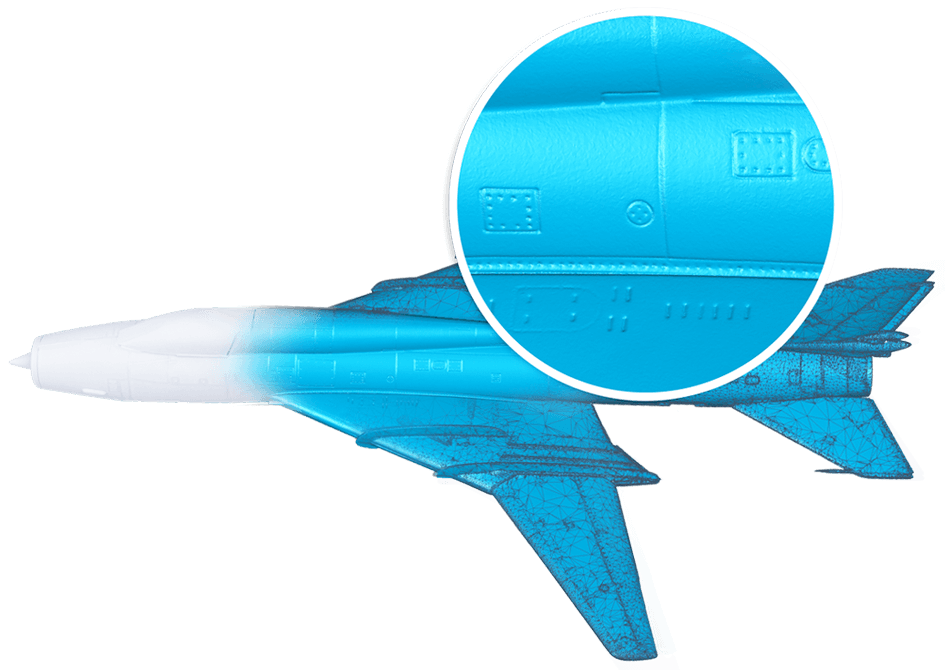

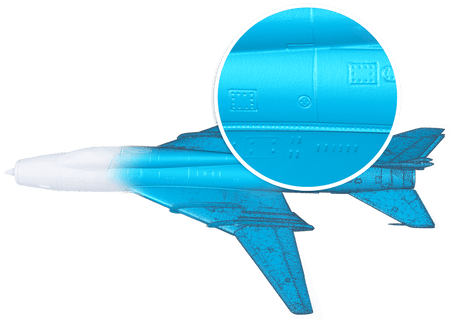

Make high resolution 3D modeling accessible to professional users
-
Meet your demands for high-quality 3D modeling of reverse engineering and design
Multi-functional and flexible scanner offers two scan modes; Auto & Fixed Scanning with a wide scanning range. This highly accurate 0.05mm scanner is easy to set-up and to use. EinScan's SE/SP software offers powerful features to allow you easy post processing.
Click here to play with a couple of scans
manipulate 3D scans
| EinScan-SP Specifications: | ||
| Scan Mode | Fixed Scan | Auto Scan |
| Mode of Alignment | Feature; Markers; Manual | Turntable, Markers, Manual, Turntable Coded Target |
| Single Shot Accuracy | ≤0.05 mm | |
| Minimum Scan Volume | 30 × 30 × 30 mm | |
| Maximum Scan Volume | 1200×1200×1200 mm | 200×200×200 mm |
| Range of Single Capture | 200×150 mm | |
| Scan Speed | <4 s | |
| Point Distance | 0.17 mm ~ 0.2 mm | |
| Texture | Yes | |
| File Format | OBJ, STL, ASC, PLY | |
| Camera Resolution | 1.3 Mega Pixels | |
| Light Source | White LED Light | |
| Stand-off Distance | 290 ~ 480 mm | |
| Computer Requirements (Required) | USB: 1 × USB 2.0 or 3.0; OS: Win7, Win8, Win10 (64 bit); CPU: Dual-core i5 or higher; RAM: 8 G | |
| Computer Requirements (Recommended) | Graphics card: Nvidia series (GTX 660 or higher) Graphic memory > 2G; RAM: 16 G | |
| Weight (unpacked) | 4.2 kg | |
| Weight (packed) | 7.0 kg | |
| Dimension | 570×210×210 mm | |
| Power Supply | 40 w | |
| Input Voltage | DC：12 v, 3.33 A | |
| Calibration Board | HD | |
| Turntable | Turntable with markers | |
| Capacity of Turntable | 5 kg | |
