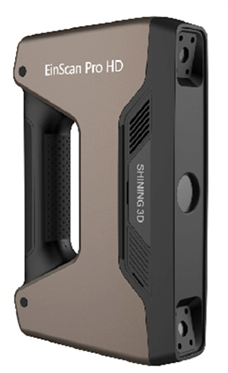

EinScan Pro HD

EinScan Pro HD w/Solid Edge Shining 3D Edition & Geomagic Bundle Option

EinScan

  • $8,995.00
Shipping calculated at checkout.



  • Impressive high resolution for fine details

  • Handle dark and casting metal surface with less limitations

  • Fast scan speed for high efficiency

 Click here to manipulate 3d scans

EinScan Pro HD is a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode.

EinScan Pro HD Specifications:
Scan Mode Handheld HD Scan Handheld Rapid Scan Fixed Scan with Turntable Fixed Scan without Turntable
(with Add-on: Industrial Pack) (with Add-on: Industrial Pack)
Scan Accuracy up to 0.045 mm up to 0.1 mm 0.04 mm(single shot accuracy) 0.04 mm(single shot accuracy)
Volumetric Accuracy* 0.3 mm/m (Markers Alignment) 0.3 mm/m (Markers Alignment) / /
Scan Speed 10 frames/s; 3,000,000 points/s 30 frames/s; 1,500,000 points/s Single Scan<0.5s Single Scan<0.5s
Point Distance 0.2 mm-3 mm 0.25 mm-3 mm 0.24 mm 0.24 mm
Single Scan Range 209*160 mm——310*240 mm
Depth of Field ±100 mm
Working Distance 510 mm
Light Source LED
Align Mode Markers Alignment Markers Alignment Turntable Coded Targets Markers
Feature Alignment [2] Texture Alignment [4] Feature Alignment Feature Alignment
Hybrid Alignment [3] Feature Alignment Markers Manual Alignment
  Hybrid Alignment Manual Alignment
Texture Scan Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack)
Software Included ExScan Pro, Solid Edge SHINING 3D Edition
Output Formats OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight 1.25kg (include the USB3.0 cable)
Supported OS Win10,(64bit)
Recommended Configuration Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0
Required Configuration Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. Select this alignment when scanning objects with rich geometrical features on the surface.
[3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
[4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information.
