EinScan HX

EinScan HX w/Solid Edge Shining 3D Edition & Geomagic Bundle Options

EinScan

  • $12,495.00
  • Save $500.00
Shipping calculated at checkout.

Only 0 left!

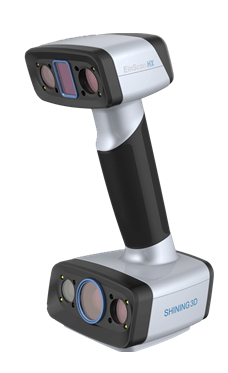

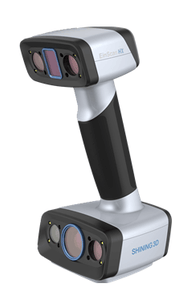

  • innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner.
  • Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.
  • The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.
  • With built-in color camera, it supports full color texture capturing and tracking by texture.

EinScan HX Specifications:
Scan Mode Rapid Scan Laser Scan
Scan Accuracy Up to 0.05mm Up to 0.04mm
Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
Scan Speed 1,200,000 points/s 480,000 points/s
20FPS 55FPS
Camera Frame Rate 55FPS 55FPS
Align Mode Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment Markers Alignment
Working Distance 470mm 470mm
Depth of Field 200mm-700mm 350mm-610mm
Max FOV 420mm*440mm 380mm*400mm
Point Distance 0.25mm-3mm 0.05mm-3mm
Light Source Blue LED 7 Blue Laser Crosses
Safety Eye-safe Class 1(Eye-safe)
Built-in Color Camera Yes
Texture Scan Yes No
Connection Standard USB3.0
Output Formats OBJ;STL;ASC;PLY;P3;3MF
Dimensions 108mmx110mmx237mm
Weight 710g
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 and higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.
