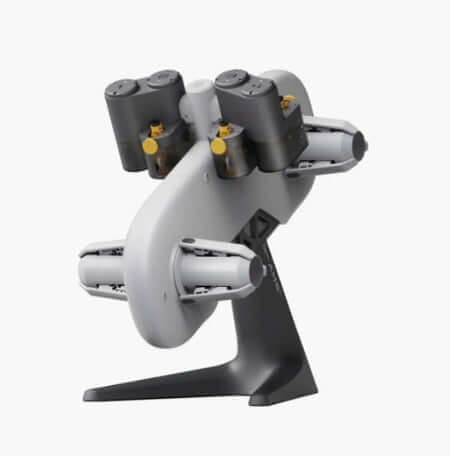

Bambu Lab AMS lite
Bambu Lab AMS lite
Bambu

Bambu Lab AMS Lite - Automatic Material System

.
SKU: D-BL-AMS-L
$279.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The AMS Lite works with the Bambu Lab A1 and A1 mini only. It is not compatible with the X1 or P1 series, which use the enclosed AMS.

Bambu Lab AMS lite

  • Multi-Color/Multi-Material Capability
  • Automatic Filament Backup
  • Improved Spool Compatibility
  • Easy to Maintain
  • RFID Filament Sync

A single AMS Lite prints up to 4 colours or materials in one job. It cannot be chained for more than 4 colours on the A1 series.

Multi-Color 3D Printing For Everyone

AMS lite brings colors to your 3D printed models, opens up a whole new world for your creativity to soar!

Filament Backup

With AMS lite, you can setup automatic filament backup to seamlessly load in new spool when the current spool runs out. Ensures an uninterrupted printing process and also preventing filament waste due to manual spool change.

Improved Spool Compatibility

The spring loaded rotary spool holder grips the spool at the center hole, improving spool compatibility especially for those paper spools.

Easy Maintenance

The simple and exposed design of the AMS lite makes it super easy to work on. Through the translucent shell, user can easily observe the inner operation structure to troubleshoot.

Hassle-Free Support Removal

With AMS lite, Bambu Lab printers can use snap-away support material or dissolvable filament to minimize the pain of removing supports.

Automatic Filament Identification

Bambu Lab filaments use RFID which is read by the AMS to automatically identify and apply the best settings for your material.

The RFID tag is synchronized automatically to Bambu Studio.


Product Weight 1.6 kg
Gross Weight 3.7 kg
Material ABS / PC / POM
Supported Filament*¹ PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dry), BVOH (dry), PP, POM, HIPS
and Bambu PLA-CF / PAHT-CF
Not Recommended Filament*² Bambu PLA Glow, Bambu PETG-CF, and other generic brands of PLA Glow-in-the-dark, etc.
Unsupported Filament*³ TPE, TPU, PVA (wet), BVOH (wet), Bambu PET-CF / PA6-CF / TPU 95A
and other brand filament that contains carbon fiber or glass fiber
Filament Diameter 1.75 mm
Supported Spool Size width: 40 - 68 mm, inner diameter: 53 - 58 mm

Third-party filament

The open-spool design accepts third-party filament within 40 to 68 mm width and 53 to 58 mm inner diameter. RFID auto-sync applies to Bambu Lab filament; other brands are set manually in the printer.

What's in the box

  • AMS Lite unit, PTFE tubes, spool holders, connecting cables, and mounting hardware.
  • Mirror the components shown in your product images.

Setup / how it works

Setting up the AMS Lite takes a few minutes: mount the four spool holders, connect the unit to the A1 or A1 mini, and load your filament. The printer detects each spool automatically. See the Bambu Lab wiki for the full step-by-step guide.

AMS Lite vs AMS

The AMS is an enclosed unit with a desiccant chamber for the X1 and P1 series, and multiple units can be chained. The AMS Lite is an open-frame external unit for the A1 and A1 mini, capped at four colours.

Frequently Asked Question

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The AMS Lite is an external four-slot material system for the Bambu Lab A1 and A1 mini. It feeds up to four filaments into the printer for multi-colour and multi-material prints, and switches to a backup spool automatically if one runs out."}]}]}
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The A1 and A1 mini only. The X1 and P1 series use the enclosed AMS, not the AMS Lite."}]}]}
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Up to four in a single print. One AMS Lite holds four spools and cannot be combined for more than four colours on the A1 series."}]}]}
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The AMS is an enclosed unit with a desiccant chamber for the X1 and P1 series, and multiple units can be chained. The AMS Lite is an open-frame external unit for the A1 and A1 mini, capped at four colours."}]}]}
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"If you print multi-colour or want unattended filament backup on an A1 or A1 mini, it removes manual spool swaps and is the main reason to choose those printers over a single-colour setup."}]}]}
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Yes. The open-spool design takes standard 1.75 mm spools within the supported size range. RFID auto-recognition works with Bambu Lab filament; other brands are configured by hand."}]}]}
