Solutionix C500 3D Scanner


  • €34.103,55
Shipping calculated at checkout.

Only 0 left!

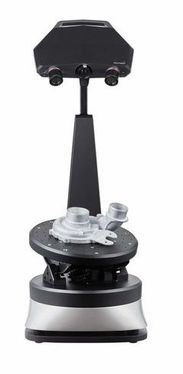

Solutionix C500 3D Scanner

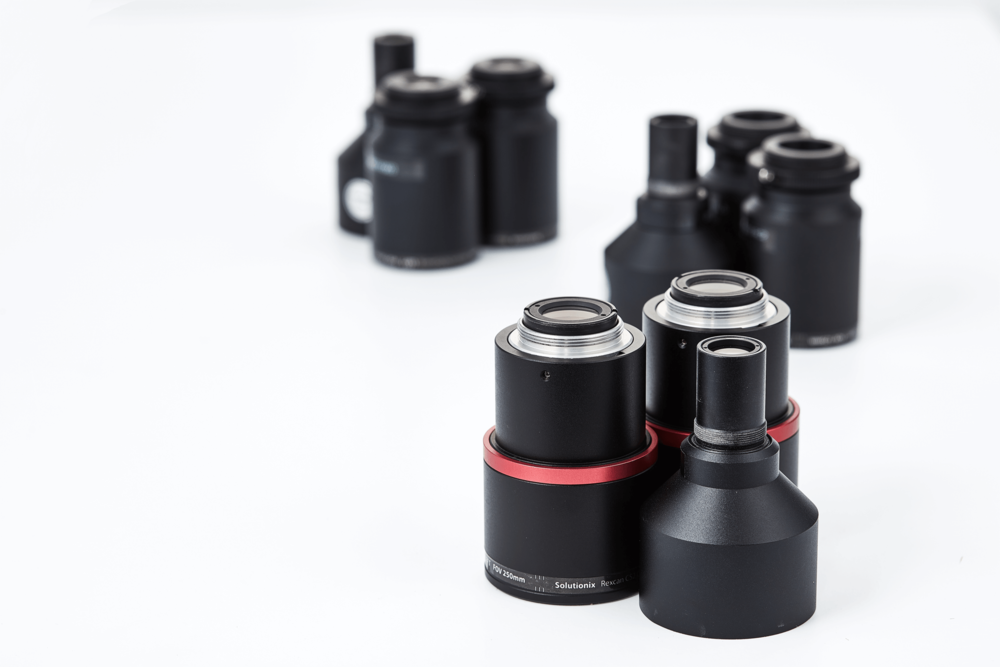

Solutionix C500 has three different sensors each with a unique measuring area. The sensors are easily interchangeable and have a range from 90mm to 500mm.

  • 5.0 MP cameras, Blue LED
  • Measuring area 90 / 175 / 350 / 500 mm
  • Point spacing 0.028 / 0.056 / 0.11 / 0.157 mm
  • Interface USB 3.0 B type
  • Accessories 3-Axis turntable (2 Rotation / 1 Swing)

It Actually is as Easy as it Looks!

​3D data acquisition with the Solutionix C500 is lightning fast. The measurement time and intuitive, user-friendly software ‘ezScan 2017’ delivers maximum efficiency and work productivity.

Solutionix C500 adopts Blue light technology enabling users to obtain extremely detailed scan data. Moreover, the compact footprint of the C500 occupies minimal space resulting in increased workspace for any additional equipment.

Optimized For High-Quality 3D Scan Data Acquisition

​Solutionix C500 boasts premium dual high-resolution cameras that maximize 3D scan data quality. C500 also provides users with 4 different scanning areas – 90, 175, 350, 500mm and also includes a 3-axis turntable, allowing users of all levels to work easily and efficiently.

Fast, easy scan work with maximum efficiency

No more confusing and time consuming calibrations. After the calibration panel is installed, simply click the calibration wizard which will guide you through an automated calibration process.

Now users can experience one-click automatic calibration easy enough for anyone in the office.

Quick, easy auto-scan for all users

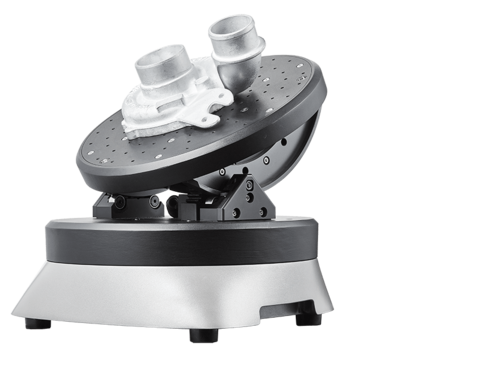

​TA300+ is optimized for automatic scanning of small and medium-sized objects. It can handle objects up to 10kg in weight and 380 mm x 320 mm (W X H) in size. Thanks to the compact design of the TA300+, it is possible to work in cramped conditions without any difficulty.

Rotation Axis : Provides ± 180° movement
Rotation (Base) Axis : Provides ± 175° movement
Swing Axis : Provides ± 40° movement

The Perfect Solution for all Applications

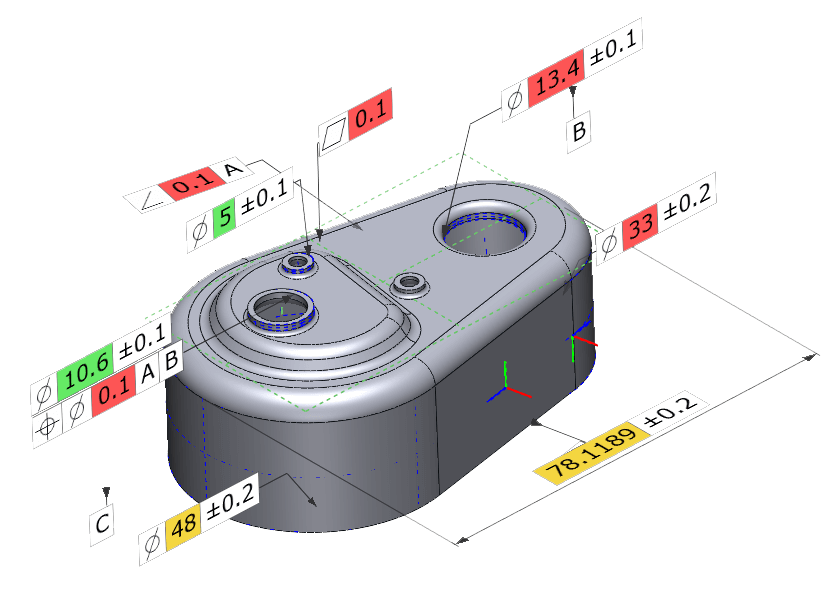

​Utilizing 3D scan data, you can experience an automated quality control process; compare measurements to the nominal CAD model; and create 3D color-coded deviation maps of the errors. The power to identify and discover solutions to any potential structural & functional defects via system and/or product modeling in a virtual environment is also possible.
