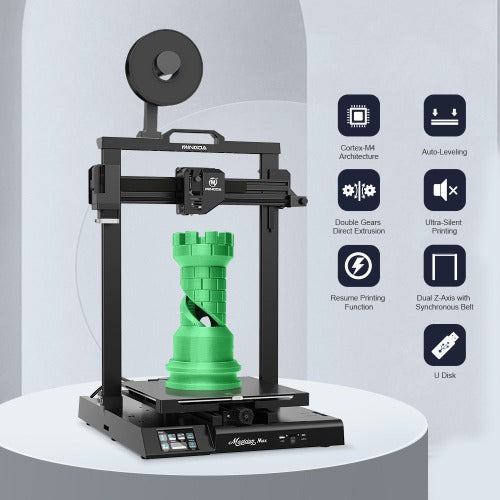

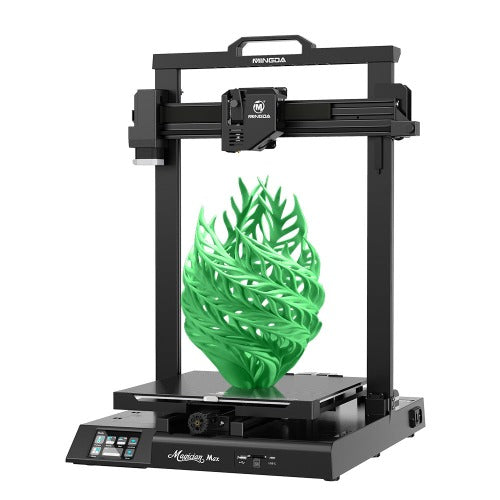

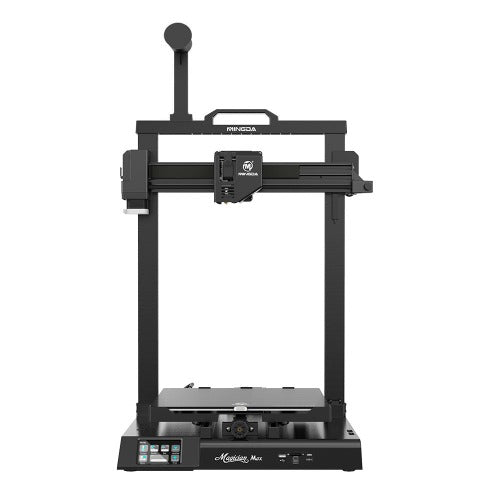

Mingda Magician Max 3D Printer
Step up to next generation printing with the Mingda Magician Max. A feature filled next generation 3d printer offers updated features that make printing easy and fun. With large print area and advanced Automatic Bed Leveling you will enjoy worry free and silent printing.
The Magician Max is equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and smoother system. The integration of silent drivers gives the motherboard both silent printing and precise voltage output control, ensuring more accurate and silent printing.

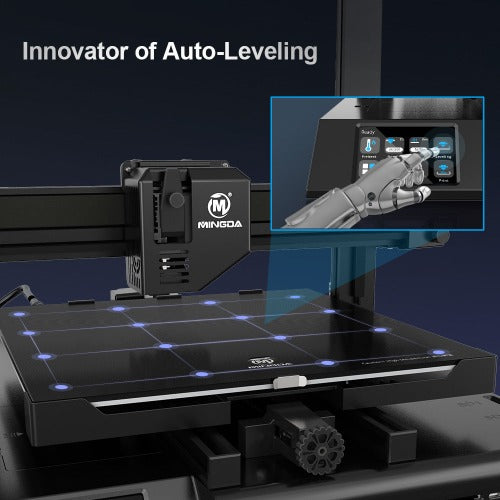

High-sensitivity sensor with one-touch 16 point precise leveling.
Large build envelope 320 * 320 * 400
So easy to assemble in just a matter of minutes complete -99% assembled.
Print anywhere in your space. Ultra quiet 40 to 50db.

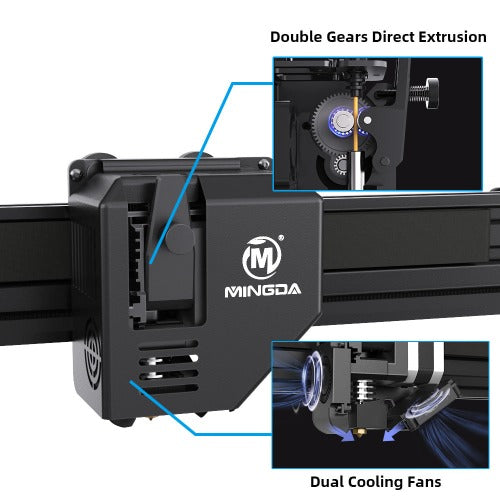

Dual cooling fans to allow for faster printing up to 100mm/s
Enhanced double geared Direct Drive Extruder to improve speed and
printing with TPU.
New 4th Generation heated glass bed. No Warp & Scratch Resistant.
Dual Z-axis with synchronous belt is a valued upgrade.
Improve the accuracy, keep “layer shift” away.
Easy to adjust your belt tensions with built in tension knobs.
All wrapped up in a powerful, high performance 32-bit chip.
Simple to operate with the 3.5" color screen.

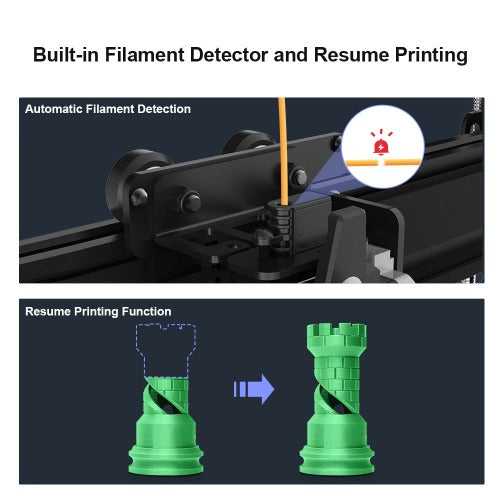

Filament Out Sensor.
Multi Connections and so much more.
● Print parameters: FDM (Fused Deposition Modeling)
● Build Volume: 320(L)*320(W)*400(H)mm
● Print Resolution: ± 0.1mm
● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
● Extruder Number: Single
● Nozzle Diameter: 0.4mm
● Print Speed: <200mm/s (recommended 60 - 80mm/s)
● Support Filaments: PLA, TPU, ABS
● Software parameters: Cura, Simplify, etc
● Input Formats: .STL, .OBJ.
● Output Formats: GCODE
● Connection Mode: SD Card, U Disk, USB-C
● Input voltage: 100/240 V AC, 50/60Hz
● Output voltage: 24V/14.6A (350W)
● Ambient operating Temperature: 5℃ - 40℃
● Operational Nozzle Temperature: max ≤260℃
● Operational Hot Bed Temperature: max ≤110℃
● Machine Size: 555mm*430mm*660mm
