3D printing has replaced foam core and card stock as the standard method for producing physical architectural and engineering models. Modern FDM printers produce scale models overnight, with accuracy and material options that manual methods cannot match. This guide covers scale planning, material selection, printer requirements, and how 3D scanning integrates into as-built documentation workflows.
Why Architects and Engineers Are Adopting Desktop 3D Printing
Physical models have always been a core communication tool in architecture and engineering. Clients understand a physical model in a way they often cannot engage with a rendered image on a screen. Site layouts, structural relationships, and spatial transitions read clearly at scale.
The traditional model-making process was time-consuming and required skilled hands. Complex curved surfaces, intricate structural systems, and multi-storey assemblies demanded hours of labour with relatively basic materials. Digital 3D printers have changed the economics of physical model-making in two significant ways.
First, the labour is largely displaced to software. Once your BIM or CAD model exists, slicing it for print is a short operation. Second, geometric complexity is free. A parametric facade with 200 individually shaped panels prints in the same workflow as a flat rectangular building. The machine does not care about complexity in the way a model-maker does.
For engineering teams, the same logic applies. Physical mockups of structural connections, mechanical assemblies, and civil engineering elements help project teams, contractors, and clients understand spatial relationships and sequencing. EnviroLaser3D has been in the technology and printing business for nearly four decades, and we have seen physical model production shift from a skilled trade to a standard desktop workflow in professional practices.

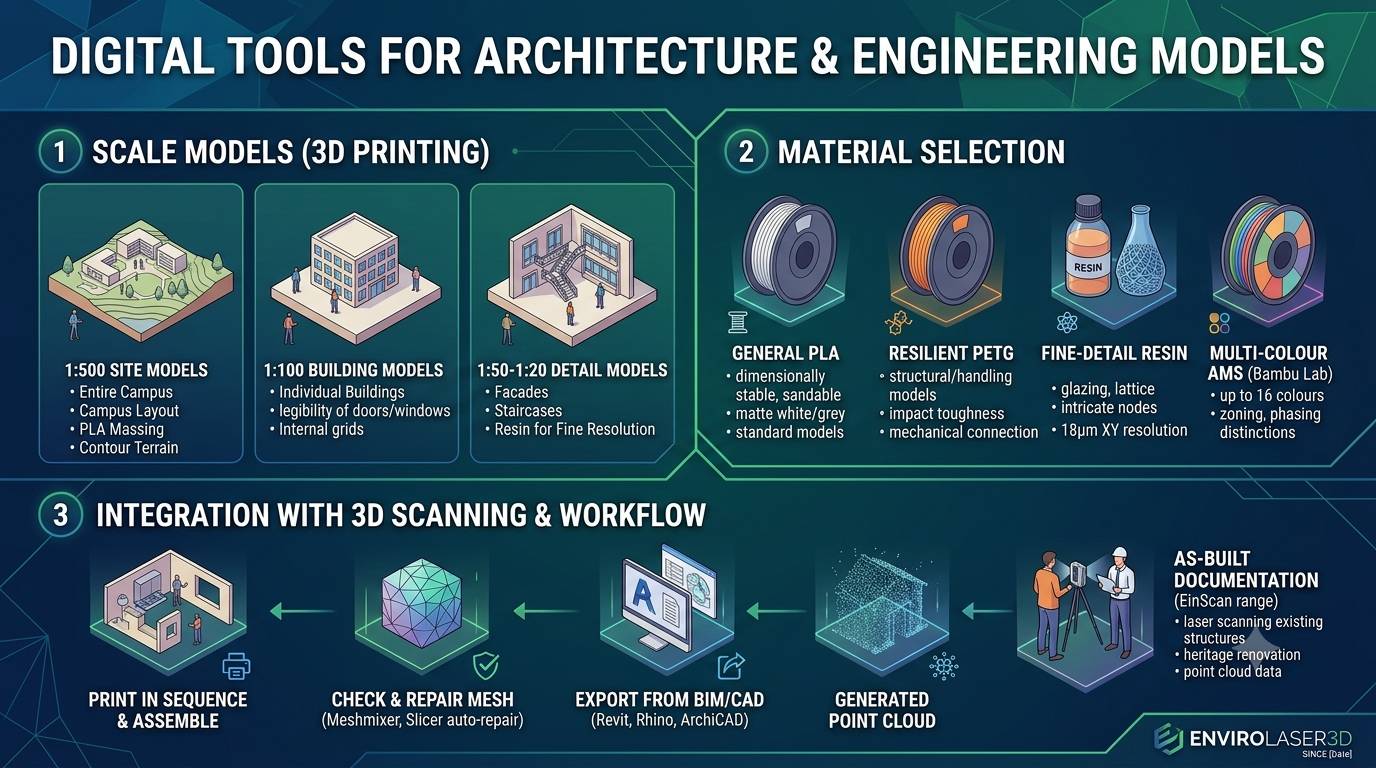

Planning Your Scale
Getting the scale right before printing is critical. A model that is too large to fit on the build plate, or too small to convey useful detail, wastes both time and material.
The most common scales for architectural models are:
1:500 to 1:200. Site models at these scales capture entire developments, urban blocks, or campus plans. Detail is limited to building massing and site topography. PLA at 0.2mm layer height is appropriate. Contour terrain is particularly well suited to 3D printing at these scales.
1:100. The standard presentation scale for individual buildings. A typical residential building fits on a 256mm x 256mm build plate at 1:100. Interior layouts are legible. Door and window openings read clearly. Structural grids are visible.
1:50 to 1:20. Detail models for specific elements: a staircase assembly, a facade system, a structural connection. At these scales, surface quality becomes more important, and resin printing is often preferred over FDM for the finest elements.
1:10 and larger. Full-scale or near-full-scale details for construction communication, fabrication mockups, or client physical samples. FDM is the appropriate process at this scale due to build volume constraints on resin systems.
Most BIM software (Revit, ArchiCAD, Vectorworks) exports to STL natively or via plugin. Rhino and Grasshopper are common for parametric work. For engineering models originating in SolidWorks, Inventor, or Fusion 360, STL or 3MF export is standard. The key step before slicing is checking the exported mesh for manifold errors (non-watertight geometry) using a tool such as Meshmixer or the repair function built into most slicers.
Material Selection for Physical Models
Different phases of the design process and different model types call for different materials. Here is the practical breakdown for architecture and engineering applications.
PLA for general model-making. PLA is the default material for architectural models. It is dimensionally stable, easy to print, sands and paints well, and is available in white and grey variants that work well for neutral presentation models. For contour terrain models, a single colour in matte grey or warm white produces a clean, professional result. EnviroLaser3D stocks EL3D PLA in a broad range of colours: see our filaments collection for current options.
PETG for structural and engineering components. Where the model needs to be handled frequently, transported, or used in a workshop environment rather than a presentation case, PETG is more resilient than PLA. It handles moderate impacts without the brittleness that PLA can show in thin sections. See our PLA vs PETG vs ABS comparison for a side-by-side breakdown of properties.
Resin for fine-detail elements. Glazing systems, intricate lattice structures, and facade elements with sub-millimetre features print more accurately in resin. Elegoo's Mars 5 Ultra achieves 18µm XY resolution, producing detail that standard FDM at 0.2mm layer height cannot replicate. See the Elegoo resin range for current options. Resin models require finishing (IPA wash and UV cure) and are more fragile than FDM models, so they are better suited to display than handling.
Multi-colour FDM for zoning and phasing. Bambu Lab printers with the AMS system support printing in up to 16 colours in a single job. For planning models where zoning distinctions, structural versus non-structural elements, or phasing sequences need to be communicated visually, multi-colour printing is a significant communication tool. The colour differentiation is built into the print rather than painted on afterwards. Our AMS setup guide covers the multi-colour workflow.
Engineering-grade materials for load-bearing mockups. For structural connections, mechanical component mockups, and details that need to simulate real-world loading, PETG, Nylon, or carbon fibre composites provide the stiffness and toughness that PLA cannot. Our engineering-grade filament guide covers the properties and applications of these materials in detail.
Printer Selection for Architecture and Engineering Models
The choice of printer depends on the typical model size and the detail level required by the practice.
For standard 1:100 and 1:50 presentation models. The Bambu Lab A1 provides a 256mm x 256mm x 256mm build volume and multi-colour capability at high print speed. The P2S enclosed chamber adds material versatility for practices that work with engineering-grade or ASA materials. Both sit in the Bambu Lab range and are well-suited to professional model-making workflows. Read our Bambu Lab overview for a full product comparison.
For large site and masterplan models. The FLSun S1 offers a 320mm diameter build plate and print speeds up to 1,200mm/s, making it suitable for large terrain models and single-print site studies that would require assembly if printed on a standard-format machine. See the FLSun brand page for specifications.
For detail elements and facade studies. The Elegoo Mars 5 Ultra or Saturn 4 Ultra provide the resolution required for fine facade elements, intricate structural nodes, and small-scale detail models where FDM layer lines would read as unwanted surface texture. Check the Elegoo brand page for current availability.
3D Scanning for As-Built Documentation and Heritage Recording
3D printing and 3D scanning are complementary technologies in architecture and engineering practice. Scanning adds an entirely different capability: the ability to create accurate digital records of existing conditions, which can then be used to produce physical models, integrate into BIM workflows, or generate comparative studies between as-designed and as-built states.
As-built modelling for renovation and refurbishment. Laser scanning an existing building or space captures point cloud data that accurately represents the existing conditions. This is particularly valuable in heritage renovation, where measured drawings are often incomplete or inaccurate. A point cloud derived from a scan can be modelled back to BIM, then printed as a reference model for the project team.
Heritage documentation. Physical and digital records of heritage structures can be produced from scan data without access to original drawings. Printed models serve as archival records, museum exhibits, and educational resources.
Terrain and site modelling. Photogrammetry and LiDAR scans of sites produce terrain data that translates directly into sliced contour models. This eliminates manual terrain modelling from plans and sections.
EnviroLaser3D stocks the EinScan range of professional 3D scanners. EinScan products are used in architecture, engineering, product design, and heritage documentation. They produce structured-light and photogrammetry scans compatible with standard architectural and engineering software. For practices that want to incorporate scanning into their model production workflow, our team can advise on the appropriate scanner model for your scale of work and environment.
Practical Workflow for Architecture Model Production
A repeatable production workflow reduces errors and keeps model production efficient. This is the sequence most professional model-makers using desktop FDM have settled on.
Step 1: Export from BIM or CAD. Export individual components or storey levels as separate STL files. Grouping everything in one export makes slicing difficult and limits flexibility.
Step 2: Check and repair the mesh. Open each STL in PrusaSlicer, Bambu Studio, or a dedicated repair tool. Identify non-manifold geometry, inverted normals, or missing faces. Most slicers will auto-repair minor issues; significant errors need CAD correction first.
Step 3: Scale and orient in the slicer. Apply the target scale. Orient pieces to minimise supports: roofscapes print cleanly face-down; walls print upright; complex overhangs may need manual support placement.
Step 4: Print in sequence. Print structural elements first to establish the base assembly. Facades, glazing frames, and landscape elements follow. For large models, print overnight to maximise throughput.
Step 5: Assemble and finish. PLA parts bond cleanly with cyanoacrylate. Sanding at 120 to 240 grit removes layer lines from visible surfaces. Spray primer and paint for presentation models.
Maintaining your printer during a demanding model production schedule requires attention to calibration and nozzle condition. Our maintenance schedule guide covers the task intervals that keep a machine in reliable condition during continuous use.
Getting Started With EnviroLaser3D
Our Nepean showroom carries printers, filaments, and EinScan scanners suited to professional architecture and engineering workflows. Our team has experience assisting practices at all scales, from sole practitioners to multi-disciplinary firms. Visit our about page to learn more about our background, or speak to our team about which equipment suits your practice's typical project scale and model-making requirements.
If you need a model printed without investing in equipment, our custom 3D print service produces architectural and engineering models to your specification. Submit your STL files and our team will advise on scale, material, and finish options.
Frequently Asked Questions
What scale should I use for a 3D printed architectural presentation model?
1:100 is the most practical scale for individual building presentations. It keeps print times manageable, fits most components on a standard 256mm build plate, and provides enough detail to read door openings, window proportions, and floor plates clearly. Site context models typically use 1:500 to 1:200.
Can I print directly from my BIM model?
Most BIM software exports to STL or IFC. STL is the universally accepted format for 3D printing. You will need to check the exported mesh for geometry errors before slicing. Some CAD geometry that looks clean on screen has non-manifold errors that cause printing issues. Most slicers include auto-repair functions that handle minor problems.
What is the best material for a white presentation model?
White or light grey PLA is the most practical choice. It is easy to print, sands well, accepts spray paint cleanly, and has the neutral tone that lets the model communicate form without colour distraction. For practices that produce models under time pressure, pre-painted white PLA avoids the need for finishing altogether.
How accurate is FDM printing for architecture models?
FDM printers achieve dimensional accuracy of approximately ±0.1mm to ±0.2mm. At 1:100 scale, this corresponds to real-world tolerances of 10mm to 20mm, which is acceptable for presentation models. For precision detail elements at 1:20 or larger, resin printing achieves ±0.025mm, which corresponds to 0.5mm real-world tolerance at 1:20.
Can 3D printing produce transparent elements for glazing?
Natural or clear PETG and transparent PLA filaments produce translucent elements that approximate glazing in a model. They are not optically clear but create a strong visual differentiation between opaque wall and transparent glass zones. Fully transparent results are difficult to achieve in FDM without post-processing; resin in clear formulation produces better results for very fine glazing elements.
How do I print a multi-storey building as a single model?
Print each storey or major component as a separate file and assemble the model with cyanoacrylate or a dry-fit pin-and-socket joint. This allows individual floors to be removed to show interior layouts, makes transport easier, and means that a printing failure on one component does not lose an entire model. Design alignment pins in CAD to ensure accurate assembly.
What is 3D scanning used for in architecture?
3D scanning captures accurate geometry of existing buildings, interiors, structures, and sites. In architecture, the most common applications are as-built documentation for renovation projects, heritage recording, and site survey for tight-tolerance extensions and conversions. Scan data is processed into a point cloud, then modelled into BIM, and can be used to produce printed models of existing conditions.
